Water Pump Testing & Certification
What is a Water Pump?
A water pump is a heavy-duty electro-mechanical fluid-handling appliance designed to move, lift, pressurize, and circulate water and other non-flammable liquids rapidly and reliably across residential, agricultural, commercial, and industrial environments.
Why Must Water Pumps Be Safety Tested or Evaluated Before Entering the Market?
Water pumps must undergo rigorous safety testing and evaluation before entering the market to protect operators, homeowners, and technicians from severe electric shocks, motor burnouts, water contamination, and electrical fires, because they combine high electrical power, continuous fluid interaction, and operation in wet or fully submerged environments.
• Electrical Shock and Short-Circuit Prevention: Water pumps operate directly in or around moisture, wells, pools, and damp spaces. Inadequate internal insulation, faulty grounding, or poor cord anchorage can lead to severe electrical shocks or short circuits. Safety testing verifies insulation resistance and dielectric strength under wet conditions.
• Mechanical and Rotor Hazard Mitigation: Operating at high rotational speeds with fast-spinning impellers means a failure in housing seals, thermal cut-offs, or cable entries can result in hazardous conditions. Mechanical endurance and structural integrity tests simulate high-stress conditions to prevent accidental exposure to moving parts or live water paths.
• Thermal Endurance and Overload Control: Continuous pumping cycles generate substantial internal heat within the motor winding. Defective thermal cut-offs or restricted fluid flow can lead to motor burnout or internal electrical fires. Thermal endurance and abnormal operation tests simulate dry-running or blocked-impeller jams to prevent hazardous failures.
• Electromagnetic Compatibility (EMC): Heavy-duty automated pumps must not emit excessive electromagnetic interference that disrupts other local electronics, nor should they malfunction when exposed to standard environmental electrical noise found in professional and domestic settings.
• Regulatory Compliance and Market Access: Global regulatory authorities (such as GSO in the GCC, CE in Europe, or equivalent international bodies) legally mandate third-party testing reports from an ISO/IEC 17025-accredited laboratory.
The Benchmark Standard: IEC 60335-2-41 for Water Pump Safety
IEC 60335-2-41 is the international safety standard that deals with the safety of electric pumps for liquids having a temperature not exceeding 90 °C, intended for household and similar purposes, with a rated voltage being not more than 250V for single-phase appliances and 480V for multi-phase appliances. For submersible pumps, garden pond pumps, shower-boost pumps, and surface-mounted water pumps, this standard defines thea baseline requirements for electrical insulation, mechanical strength, thermal endurance, stability, and water-ingress resistance.
Core Testing Parameters Under IEC 60335-2-41

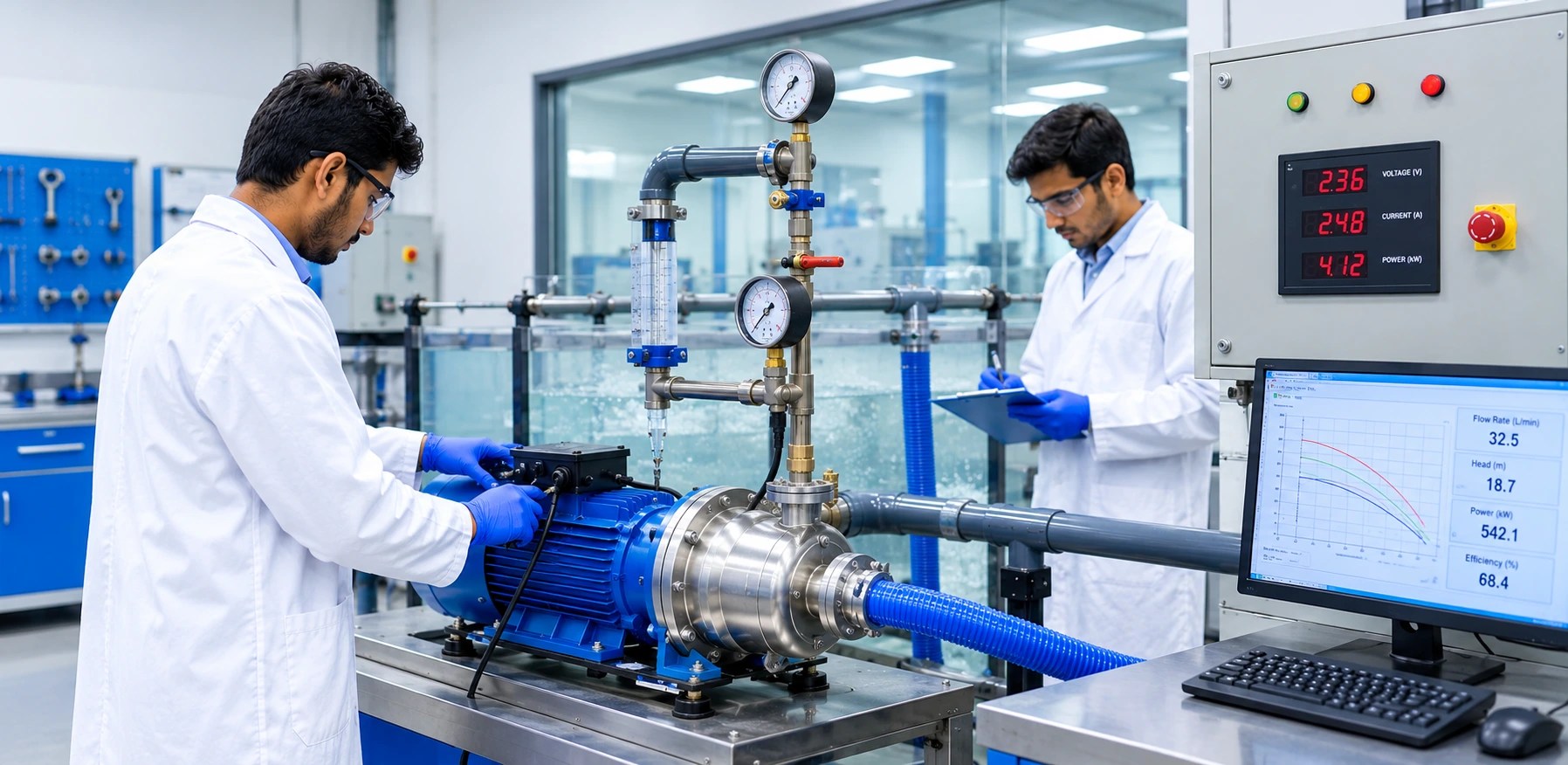

Evaluating a water pump through a certified Water Pump Testing Lab involves subjecting the device to a series of rigorous mechanical and electrical stress tests outlined within the standard:
1. Classification & Marking Tests
• Protection Against Electric Shock: Verifies that the pump is properly classified as Class I, Class II, or Class III.
• Durability of Markings: Rating plates, warning notices, flow direction indicators, and voltage/power specifications are tested for legibility (rubbed with water and petroleum spirit for 15 seconds each) to ensure safety instructions do not wear off.
2. Protection Against Access to Live Parts
• Standard test probes are applied to ventilation openings, cable entries, and detachable covers to ensure that users cannot inadvertently touch bare live components, internal wiring, or motor terminals.
3. Heating and Overload Tests
• Normal Load Operation: The pump is run under maximum rated load conditions and specific water temperatures specified in the standard to measure temperature rises.
• Winding Temperature Limits: Motor windings and internal electrical components are monitored via thermocouples to ensure temperatures do not exceed strict thermal limits that could degrade insulation and trigger a fire hazard.
4. Leakage Current and Electric Strength at Operating Temperature
- • Hot Leakage Current: Measured immediately after the heating test while the machine is still at operating temperature to ensure current leaking to accessible metal parts or surrounding water remains below safe thresholds (e.g., typically ≤0.75mA for Class I appliances).
• Electric Strength (Dielectric/Hi-Pot Test): High voltage is applied between live parts and accessible surfaces or water paths to verify insulation breakdown resistance.
5. Overload Protection of Associated Circuits
• Evaluates electronic control boards, pressure switches, capacitors, and power supply circuits under fault conditions to ensure components do not catch fire or fail unsafely if jammed.
6. Mechanical Strength and Hazard Protectios
• Enclosure & Impact Tests: Housings, terminal boxes, and structural mountings are subjected to mechanical impact and pressure tests to verify they can handle physical stress, rough handling, and fluid pressure without exposing live parts or causing leaks.
7. Clearance, Creepage Distances, and Solid Insulation
Measuring physical gaps (clearances) and surface distances (creepage) across internal wiring blocks and control modules to prevent arcing, short circuits, and tracking, especially in humid or condensing pump installation chambers.
Why Choose METS Laboratory LLC as Your Water Pump Testing Lab?
Manufacturers expanding their footprint require localized, accredited support. As an established Water Pump testing lab in Abu Dhabi/Dubai/UAE, METS Laboratory LLC bridges the gap between regional compliance and global market demands.
• ISO/IEC 17025 Accreditation: Our testing protocols are internationally recognized, ensuring your technical documentation is accepted worldwide.
• Specialized IEC 60335-2-41 Competence: We provide dedicated testing for motor-operated liquid pumps, covering specific clauses for submersible, surface, and circulation appliances under IEC 60335 standards.
• End-to-End Water Pump Testing & Certification: From initial sample evaluation and performance testing to final certification support, our team streamlines your compliance journey.
• Global Recognition: As an ISO/IEC 17025 accredited laboratory, METS issues report that carry weight globally, bridging local compliance with acceptance across international markets.
